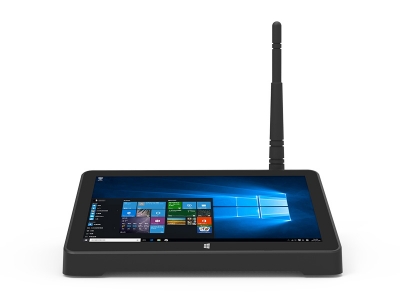

F2 7'' Tablet pc
The 7” Tablet PC is designed to provide high-performance computing power to users in harsh environments.SpecificationsDisplay: 7 inch 800*1280 IPS G+PProcessor: Intel Cherry Trail Z8350 1.44~1.9
The 7” Tablet PC is designed to provide high-performance computing power to users in harsh environments.
Specifications
Display: 7 inch 800*1280 IPS G+P
Processor: Intel Cherry Trail Z8350 1.44~1.92GHz Quad Core
Memory(RAM): 4GB DDR3
Storage: 64GB/128GB eMMC
Ethernet:RJ-45 100/1000Mbps
Wireless : WiFi2.4GHz, Bluetooth 4.0
I/O Ports: 1xHDMI, 3xUSB 2.0, 1xUSB 3.0, 1x micro SD card slot, 1x earphone
AC adapter: 5V/3A
Size: 179X135X52 mm
Battery:None
warranty: 1 year
Product features
● Adopts Intel Cherry trail T3(Quad-core )Z8350 design；
● Combine the advantages of tablet；
● Built-in with 7” IPS screen. Handle by finger directly；
● Built-in with high volume battery 6000mAh；
● Turn off the screen, and the power consumption is less than 1KW/H even the device is on；
● Pre-install legal Windows 10；
● 3 ways to mount: wall-mounted, panel-mounted or embedded；
● Recreation and Entertainment, everything is possible；
Product specification
Specifications | ||
| Type | Details | Description |
| LCD | Screen Size | 7" |
| Screen Resolution | 800*1280 IPS | |
| Battery | Type | 6000mAh work for about 2 hours |
Hardware Configuration | ||
| Type | Details | Description |
| CPU | Type | Intel Cherry trail T3(Quad-core )Z8350 |
| Frequency | 1.44 ~1.92GHz | |
| GPU | Type | Intel HD Graphic(Gen7) |
| Multimedia support hardware decoder | Pictures | BMP, JPG, GIF, PNG |
| Video | MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) | |
| Audio | MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (Need license) | |
| RAM | DDR3 | 2GB DDR3L |
| ROMFlash | Nand Flash | 32GB /64GB |
Network Connections | ||
| Type | Details | Description |
| WIFI | WIFI Module | WIFI 802.11b/g/n+BT 4.0 |
| 3G | External | 3G Dongle (WCDMA/EVDO/TD-SCDMA（可選）) |
| Ethernet | Ethernet RJ45 | Support 100Mbps |
I/O | ||
| Type | Details | Description |
| TF Card Slot | Expand External Storage | Support 64GB TF card |
| USB Port | Expand External Storage and Data Transmission | HOST female port*4（USB3.0*1，USB2.0*3） |
| Earphone Jack | Audio Output and Microphone Input | ∮3.5mm standard earphone jack (with microphone) |
| HDMI Port | Video and Audio Output | HDMI A Type |
| Keyboard | Input Device | USBkeyboard( support wired and wireless) |
| Mouse | Input Device | USBmouse( support wired and wireless) |
Standard Accessories | ||
| Type | Details | Description |
| Adapter | Standard | 12V/2.4A |
Software configuation | ||
| Type | Details | Description |
| OS | OS Version | Windows 10 |
| Language | Multilanguage (Default in English ) | |
| FLASH | FLASH(support hardware decode), FLASH 11 | |
| HTML5 | Support | |
| OS APPS | Preinstalled APPS | SupportOffice word 、Excel、 PPT、 PDF |
| ES File Explorer | ||
Product interface
